Frac Tanks

Mobile Frac Tanks and Mini Frac Tanks manufacturer India

Offshore Batch Mixer

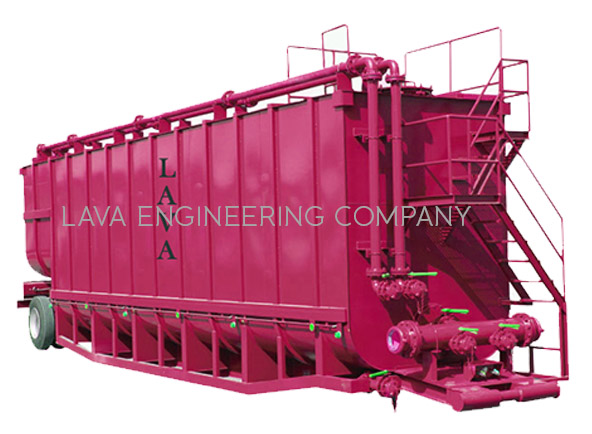

LAVA Mobile Frac Tanks are manufactured in INDIA to meet the conditions encountered in the Oil and Gas industry. The unique V bottom floor design gives the operator easier cleaning and maintenance of the tanks. Manufactured with 6mm Plates for the floor, LAVA Frac tanks are supported with the strongest undercarriage when compared with normal Frac tanks available in the market. The non-corrugated Side walls gives smooth finish to avoid overlapping of Mud waste.

LAVA Mobile Frac tanks come in 250 BBL & 500 BBL capacity. Custom manufacture Frac tanks based on customer specific requirements are also undertaken to suit site operations. We are also Mini Frac tanks manufacturer in India and our tanks boasts a wide array of safety features including a safety side stairway, nonslip materials on all climbable surfaces and “safety yellow” rails and catwalks for high visibility.

LAVA Mobile Frac Tank Technical specification

Dimension
-
9.6 X 8.6 X 46 ft
MOC
-
A 36 / IS 2062 with Epoxy coating
Design Code
-
DNV 2.7-1 / EN 12079 -1
Capacity
-
250 BBL / 500 BBL
Floor, Roof and Ends
-
6 mm with Stiffeners
Squares
-
IS 4923
Accessories
-
Swing Bolt Front Manlid, 8” Front Manifold with 4Nos Discharge unions, Front & Rear Discharge Acid resistant Valves, Stair way, Grip struts,Decals
Axle
-
Single and Double Axle Model
Tyre
-
11R X22 Radial Tyres
Kingpin
-
Standard 2” ADR Kingpin
